Iron Removal Plant

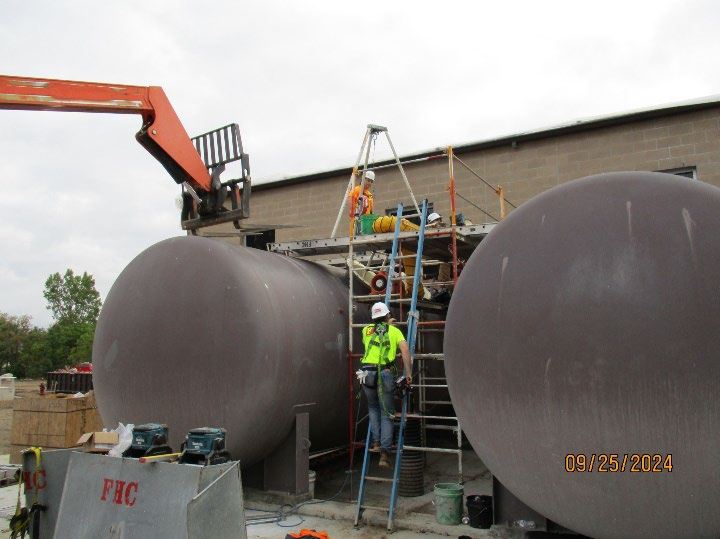

September 2024 – Mackenzie Excavation prepped and graded out the north overhead door apron, graded the area west of the pressure tanks for exterior concrete slab. RK Davis poured various, remaining slabs needed to finish installs. The Traffic coating is installed on the Aeration Basin slab. The aluminum handrail is installed around the perimeter of the EQ tank along with the ladder down to the bottom. The Membrane roof is installed at the pump room, skylights and perimeter flashing needs to be installed. Interior metal ceiling stud framing is 98% complete. All drywall ceilings are 98% complete and installed per fire code.  Painting of the walls and ceilings are 95% complete. The steel I-beams are installed in the pipe gallery for the grating. Exterior aluminum doors are 25% complete. Interior aluminum fire rated frames with glass are 75% installed. Interior Equipment pads coatings are 95% complete. The HVAC duct at the Equipment platform is 75% complete. The remaining duct at the ground floor is 80% complete. Process piping at the interior pressure tanks is 99% complete. Interior overhead copper piping is 70% complete. Interior pipe manifolds and related accessories in all three Pressure Tanks is 80% complete. The pump room piping is 80% complete. Various pumps and process equipment are installed in the Chemical rooms. This work is about 50% complete. The primary high voltage tie in connection along Saginaw Highway along with the new utility pole is installed. The underground gas line is installed up to the new building at the east side wall along with the new gas meter. Interior surface mount conduit is 75% complete. September 2024 – Mackenzie Excavation prepped and graded out the north overhead door apron, graded the area west of the pressure tanks for exterior concrete slab. RK Davis poured various, remaining slabs needed to finish installs. The Traffic coating is installed on the Aeration Basin slab. The aluminum handrail is installed around the perimeter of the EQ tank along with the ladder down to the bottom. The Membrane roof is installed at the pump room, skylights and perimeter flashing needs to be installed. Interior metal ceiling stud framing is 98% complete. All drywall ceilings are 98% complete and installed per fire code.  Painting of the walls and ceilings are 95% complete. The steel I-beams are installed in the pipe gallery for the grating. Exterior aluminum doors are 25% complete. Interior aluminum fire rated frames with glass are 75% installed. Interior Equipment pads coatings are 95% complete. The HVAC duct at the Equipment platform is 75% complete. The remaining duct at the ground floor is 80% complete. Process piping at the interior pressure tanks is 99% complete. Interior overhead copper piping is 70% complete. Interior pipe manifolds and related accessories in all three Pressure Tanks is 80% complete. The pump room piping is 80% complete. Various pumps and process equipment are installed in the Chemical rooms. This work is about 50% complete. The primary high voltage tie in connection along Saginaw Highway along with the new utility pole is installed. The underground gas line is installed up to the new building at the east side wall along with the new gas meter. Interior surface mount conduit is 75% complete. September 2024 – Mackenzie Excavation prepped and graded out the north overhead door apron, graded the area west of the pressure tanks for exterior concrete slab. RK Davis poured various, remaining slabs needed to finish installs. The Traffic coating is installed on the Aeration Basin slab. The aluminum handrail is installed around the perimeter of the EQ tank along with the ladder down to the bottom. The Membrane roof is installed at the pump room, skylights and perimeter flashing needs to be installed. Interior metal ceiling stud framing is 98% complete. All drywall ceilings are 98% complete and installed per fire code.  Painting of the walls and ceilings are 95% complete. The steel I-beams are installed in the pipe gallery for the grating. Exterior aluminum doors are 25% complete. Interior aluminum fire rated frames with glass are 75% installed. Interior Equipment pads coatings are 95% complete. The HVAC duct at the Equipment platform is 75% complete. The remaining duct at the ground floor is 80% complete. Process piping at the interior pressure tanks is 99% complete. Interior overhead copper piping is 70% complete. Interior pipe manifolds and related accessories in all three Pressure Tanks is 80% complete. The pump room piping is 80% complete. Various pumps and process equipment are installed in the Chemical rooms. This work is about 50% complete. The primary high voltage tie in connection along Saginaw Highway along with the new utility pole is installed. The underground gas line is installed up to the new building at the east side wall along with the new gas meter. Interior surface mount conduit is 75% complete.
